| ITEMS |
HTC-381 |

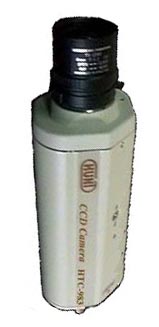

HTC-983 |
| CHIP SETS |
SENSOR SAMSUNG 1/3" |
SENSOR SONY 1/3" |
| IMAGE SIZE H x V mm |
5.9 x 5.1 |
6.0 x 4.96 |
| PICTURE ELEMENT |
EIA: 510H x 492V - CCIR: 500H x 582V |
EIA: 510H x 492V - CCIR: 500H x 582V |
| HORIZONTAL RESOLUTION |
More than 350 lines |
More than 420 Lines |
| HORIZONTAL SYNC. FREQUENCY |
EIA: 15.734 kHz,- CCIR: 15.625 kHz |
EIA: 15.734 kHz,- CCIR: 15.625 kHz |
| VERTICAL FREQUENCY |
EIA: 60Hz - CCIR: 50Hz |
EIA: 60Hz - CCIR: 50Hz |
| CLOCK FREQUENCY |
EIA: 19.0699 MHz - CCIR: 18.9375 MHz |
EIA: 19.0699 MHz - CCIR: 18.9375 MHz |
| SCANNING SYSTEM |
2:1 INTERLACE |
2:1 INTERLACE |
| SENSITIVITY |
0.3 Lux F=1.4 |
0.1 Lux F=1.4 |
| SYNCHRONIZATION |
INTERNAL |
INTERNAL |
| S/N RATIO |
MORE THAN 46dB |
MORE THAN 50dB |
| ELECTRONIC SHUTTER |
Up to 1/125,000 sec,(Linear) |
Up to 1/100,000 sec,(Linear) |
| GAMMA |
0.45 |
0.45 |
| B.L.C. Black light compensation |
YES |
YES |
| VIDEO OUT/AUTO IRIS |
1 Vp-p, 75 Ohms/Video Driver |
1 Vp-p, 75 Ohms/DC Driver Option |
| MOUNT LENS |
C&CS |
C&CS |
| POWER SUPPLY |
24 VAC |
24 VAC |
| POWER CONSUMPTION |
24 VAC, 120 mA |
24 VAC, 120 mA |
| DIMENSIONS & WEIGHT |
DC: 104mm x 46mm x 40mm (220gr) |
DC: 110mm x 48mm x 50mm (210gr) |
| Dmm x Wmm x Hmm (gr) |
AC: 137mm x 46mm x 40mm (510gr) |
AC: 143mm x 48mm x 50mm (370gr) |
| STORAGE TEMPERATURE |
-30°C to +45°C |
-30°C
to +60°C |
| OPERATING TEMPERATURE |
-10°C to +60°C |
-10°C to +45°C |
